제목[SERVER] Supermicro SYS-622B-TRT | 2U Mainstream Server2026-09-15 12:21
작성자 Level 10

[SERVER] Supermicro SYS-622B-TRT | 2U Mainstream Server







주요 응용 분야

가상화

엔터프라이즈 서버

애플리케이션 및 데이터 서비스

컴퓨팅 집약적 애플리케이션


주요 특징

듀얼 Intel® Xeon® 6700/6500 시리즈 P-코어 프로세서 또는 6700 시리즈 E-코어 프로세서, 최대 350W TDP(공랭식)

16개의 DIMM 슬롯에 최대 2TB 6400MT/s ECC DDR5 RDIMM 지원

RJ45 10GbE 포트 2개

최대 2개의 PCIe 5.0 x8 LP 슬롯 + 4개의 PCIe 5.0 x16 LP 슬롯

최대 4개의 전면 핫스왑 3.5인치 NVMe/SAS/SATA 드라이브 베이 + 4개의 전면 핫스왑 3.5인치 SAS/SATA 드라이브 베이

2개의 이중화된 1200W 티타늄 레벨 전원 공급 장치

2U 랙마운트 섀시, 깊이 25.5인치(647mm)


Product SKUs
SYS-622B-TRT
Motherboard
Super X14DBI-T
Processor
CPU
Core Count
  • P-cores: Up to 128C/256T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports (front)
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA port
Serial
  • 1 COM port (Rear)
  • 1 COM port (Front)
TPM
  • 1 TPM Onboard/port 80
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
Fan
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Certifications
Operating Systems
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R1K23LPP1
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Gross Weight: 69 lbs (31.2 kg)
  • Net Weight: 36.38 lbs (16.5 kg)
Available Color
  • Black

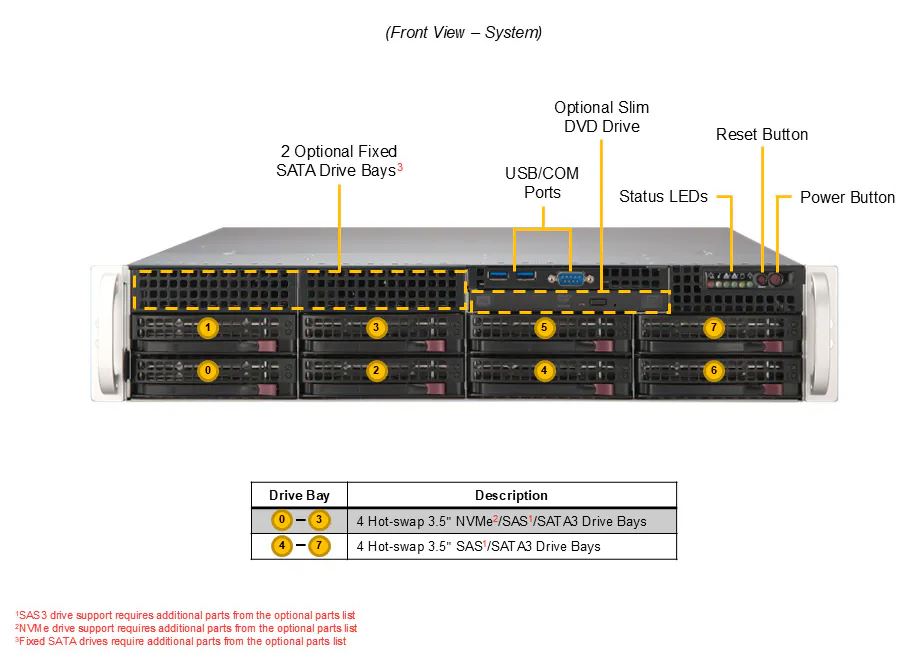

Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
    • 4 front hot-swap 3.5" SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
M.2
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • Up to 3 middle 8cm Fan(s)
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle









상호SUPER MICRO COMPUTER. INC.
기기명칭Server
모델명SYS-622B-TRT
파생모델명SYS-622B-TR
825-R12X14
인증번호R-R-S2M-622B-TRT
제조자SUPER MICRO COMPUTER. INC.
제조국가미국,말레이시아,네델란드,대만
인증연월일2026-09-10



출처 : Supermicro SYS-622B-TRT | 2U Mainstream Server
