[SERVER] Supermicro Hyper SuperServer SYS-122HA-TN-LCC (1U/인텔제온6)

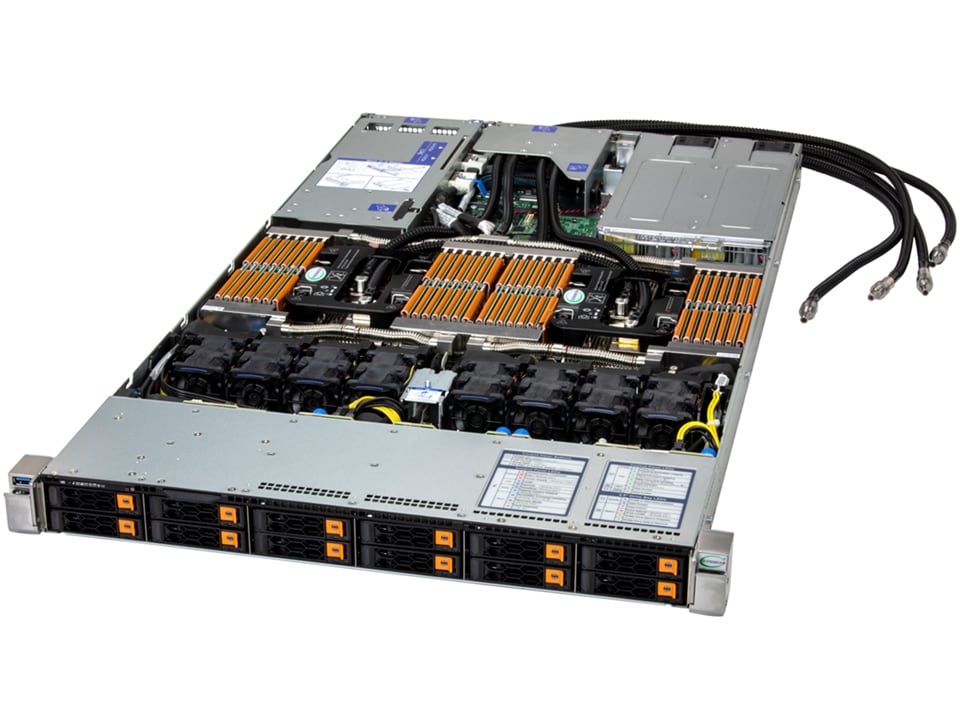

Hyper SuperServer SYS-122HA-TN-LCC
Hyper SuperServer SYS-122HA-TN-LCC

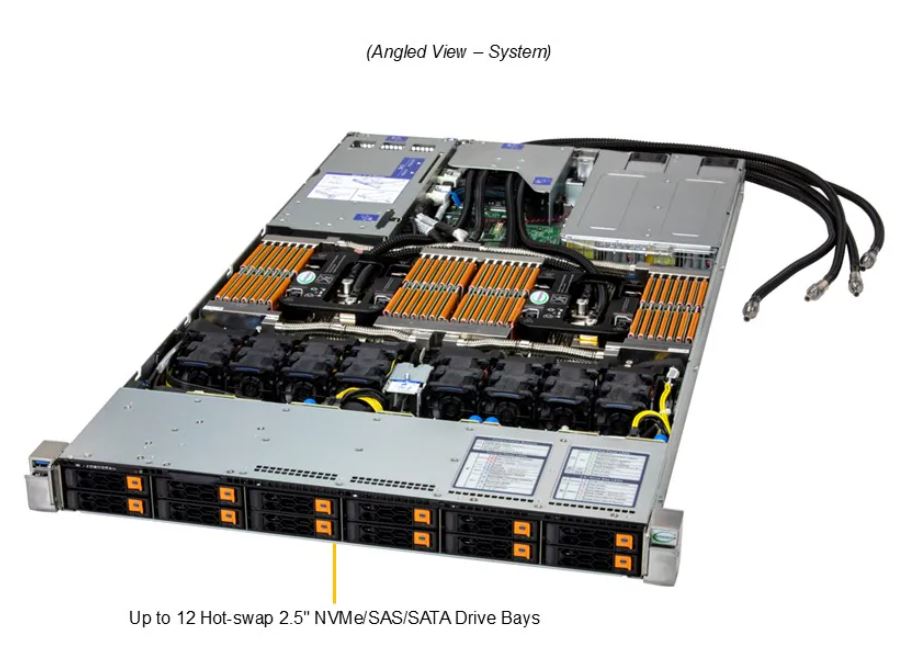

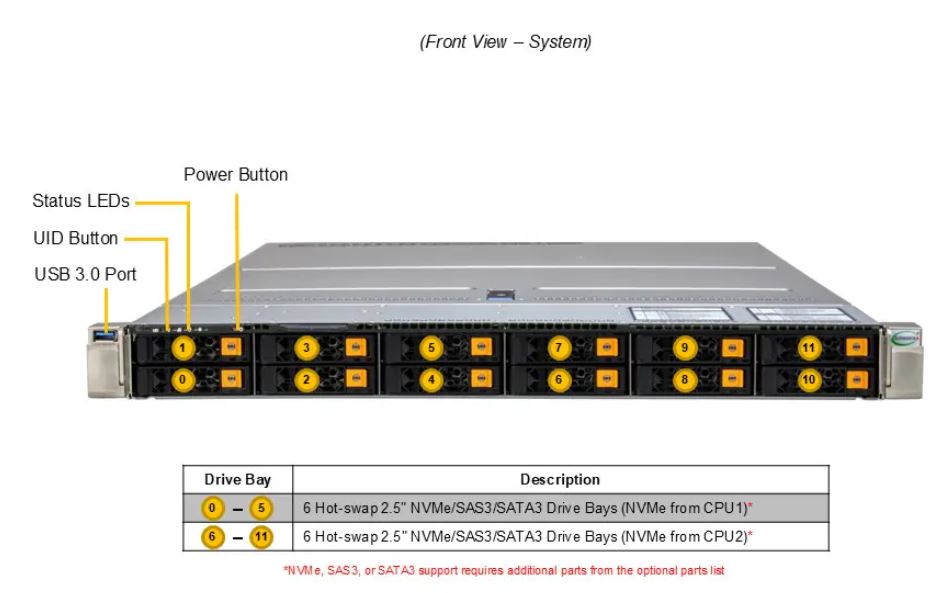

Hyper SuperServer SYS-122HA-TN-LCCHyper SuperServer SYS-122HA-TN-LCC 핫스왑 2.5" NVMe 베이 12개 및 PCIe 5.0 x16 2개 + PCIe 5 1개가 있는 1U Hyper. 0 x16 AIOM 슬롯
주요 애플리케이션 인공 지능(AI) 가상화 고성능 컴퓨팅 데이터 분석

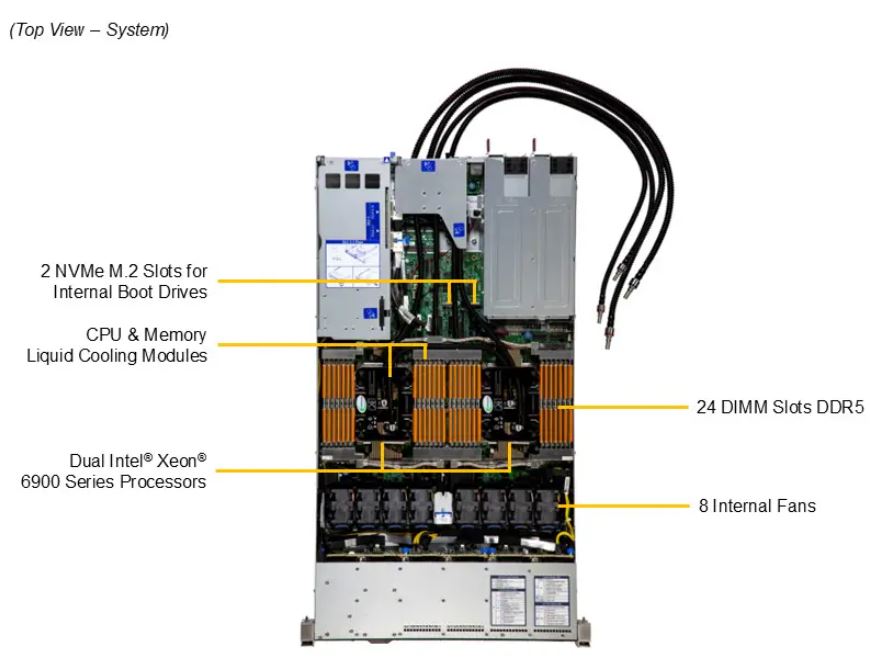

주요 기능 최대 500W의 P-코어 듀얼 인텔® 제온® 6900 시리즈 프로세서 및 D2C 액체 냉각 최대 6TB 6400MT/s DDR5 RDIMM 또는 3TB 8800MT/s DDR5 MRDIMM 지원 최대 24개의 DIMM 12 2. 5" 핫스왑 NVMe 드라이브 베이 PCIe 5.0 x16 슬롯 2개(전체 높이, 10.5" 길이) 유연한 네트워킹 옵션을 위한 AIOM/OCP 3.0 NIC 슬롯 1개 1600W~2600W 옵션의 중복 티타늄 레벨 전원 공급 장치 30.66"(778.7mm) 깊이의 1U 랙 마운트 섀시
|
| SuperServer SYS-122HA-TN-LCC |
|
| CPU | | | Core Count | - Up to 128C/256T; Up to 504MB Cache per CPU
| | Note | - Supports up to 500W TDP CPUs (Liquid Cooled)
|
|
| Memory | - Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
- View Memory Options
| | Memory Voltage | |
|
| NVMe | | | Chipset | | | Network Connectivity | |
|
| LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | - 2 USB 3.0 ports(rear)
- 1 USB 3.0 port(front)
| | Video | |
|
| Software | | | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
|
|
| Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
|
|
| CPU | - Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
| Height | | | Width | | | Depth | | | Package | - 8.82" (H) x 26.46" (W) x 43.31" (D)
| | Weight | - Gross Weight: 41.4 lbs (18.8 kg)
- Net Weight: 19.2 lbs (8.7 kg)
| | Available Color | |
|
| LED | - HDD activity
- LAN1 activity
- Power status
- System information
| | Buttons | |
|

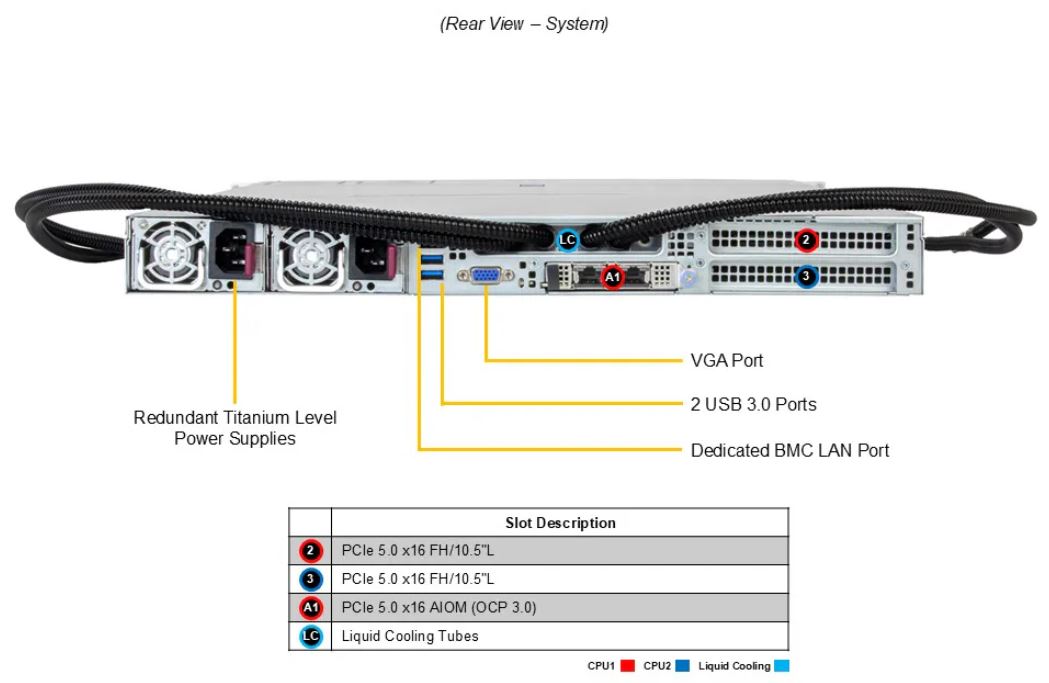

| PCI-Express (PCIe) Configuration | - Default
- 2 PCIe 5.0 x16 FH/10.5"L slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- View AOC Options
|
|
| Drive Bays Configuration | | | M.2 | |
|
| Fans | - 8 counter-rotating 40x40x56mm Fan(s)
| | Liquid Cooling | - Direct to Chip (D2C) Cold Plate
|
|
2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies | Dimension (WxHxL) | 73.5 x 40 x 265 mm |
|---|
| Input | 1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only) |
|---|
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac) |
|---|
| 12V SB | Max: 3.5A / Min: 0A
Max: 3.5A |
|---|
| Output Type | Backplanes (gold finger) |
|---|
|
| |
|
| Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
