제목[SERVER] Supermicro Hyper A+ Server AS-1126HS-TN (1U, AMD SP5) 2025-07-29 09:23
작성자 Level 10
첨부파일as -1126hs-tn.pdf (561.2KB)

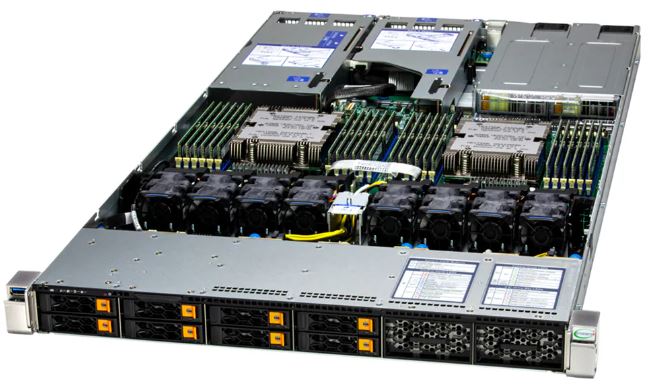

[SERVER] Supermicro Hyper A+ Server AS-1126HS-TN (1U, AMD SP5)

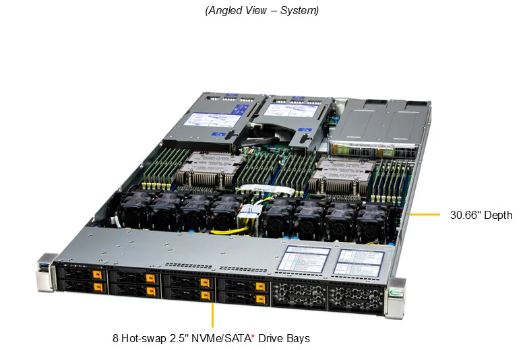

최대 12개의 핫스왑 2.5" NVMe/SAS/SATA 베이와 3개의 PCIe 5.0 x16 슬롯 + 1개의 PCIe 5.0 x16 AIOM 슬롯을 갖춘 1U Hyper


주요 애플리케이션

가상화, 소프트웨어 정의 스토리지, AI 추론 및 머신러닝, 클라우드 컴퓨팅, 엔터프라이즈 서버, 고성능 컴퓨팅(HPC)


주요 기능

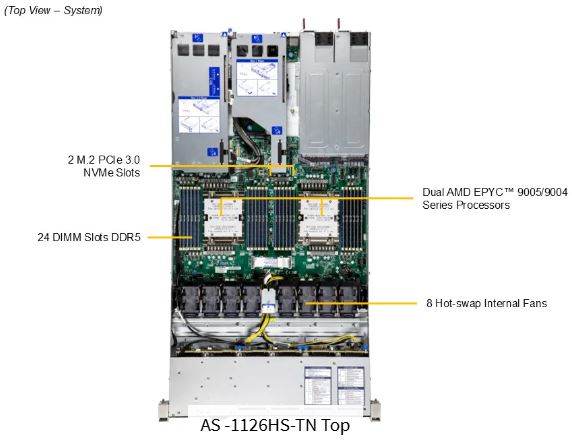

듀얼 AMD EPYC™ 9005/9004 시리즈 프로세서

최대 DDR5 24개 DIMM 슬롯(1DPC), 최대 6400MT/s 속도 지원

(자세한 내용은 시스템 메모리 섹션을 참조하십시오.)

PCIe 5.0 x16 FHFL 슬롯 2개

PCIe 5.0 x16 FHHL 슬롯 1개

AIOM 네트워킹 슬롯 1개(OCP NIC 3.0 호환)를 통한 유연한 네트워킹 옵션

핫스왑 2.5인치 NVMe/SATA 드라이브 베이 8개

추가 부품을 통한 핫스왑 2.5인치 NVMe/SATA 드라이브 4개 지원(옵션)

M.2 PCIe 3.0 NVMe 슬롯 2개

듀얼 1600W / 2000W / 2600W 이중화 티타늄 레벨 전원 공급

(구성 및 애플리케이션 부하에 따른 전원 공급 장치 완전 이중화)













Product SKUs
A+ Server AS -1126HS-TN
Motherboard
Super H14DSH
Processor
CPU
Core Count
  • Up to 384C/768T
Note
  • Supports up to 500W TDP CPUs *
  • *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

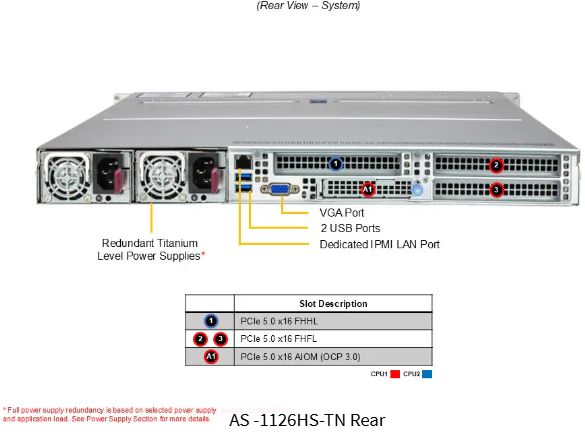

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • UEFI 2.8
  • USB Keyboard support
  • ACPI 6.5
  • SMBIOS 3.7 or later
Management
Software
Power configurations
  • ACPI/APM Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS101-R000NFP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 30.66" (778.7 mm)
Package
  • 8.82" (H) x 26.46" (W) x 43.31" (D)
Weight
  • Gross Weight: 41.4 lbs (18.8 kg)
  • Net Weight: 19.2 lbs (8.7 kg)
Available Color
  • Silver

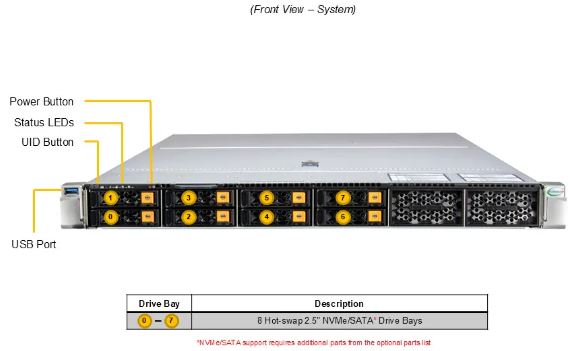

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHHL slot
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
CXL Support
  • Up to 4 CXL 2.0 x16 devices
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SATA* drive bays

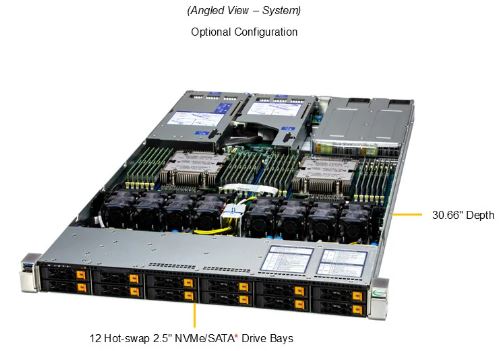

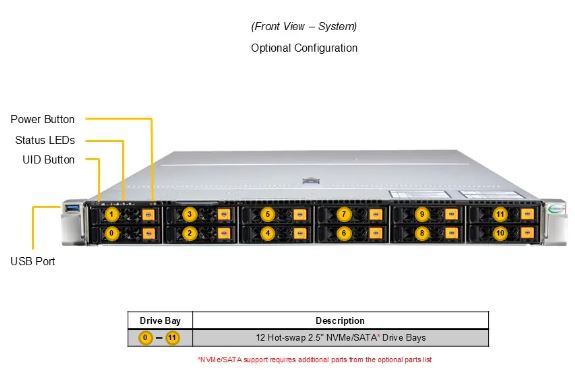

  • Option A: Total 12 bays
    • 12 front hot-swap 2.5" NVMe*/SATA* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud
  • 2 Air Shrouds
Power Supply
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle



상호SUPER MICRO COMPUTER. INC.
기기명칭Server
모델명SYS-242H-NR
파생모델명218H2-Q27X14
218H2-27
인증번호R-R-S2M-242H-NR
제조자SUPER MICRO COMPUTER. INC.
제조국가미국,네델란드,대만
인증연월일2025-07-11
