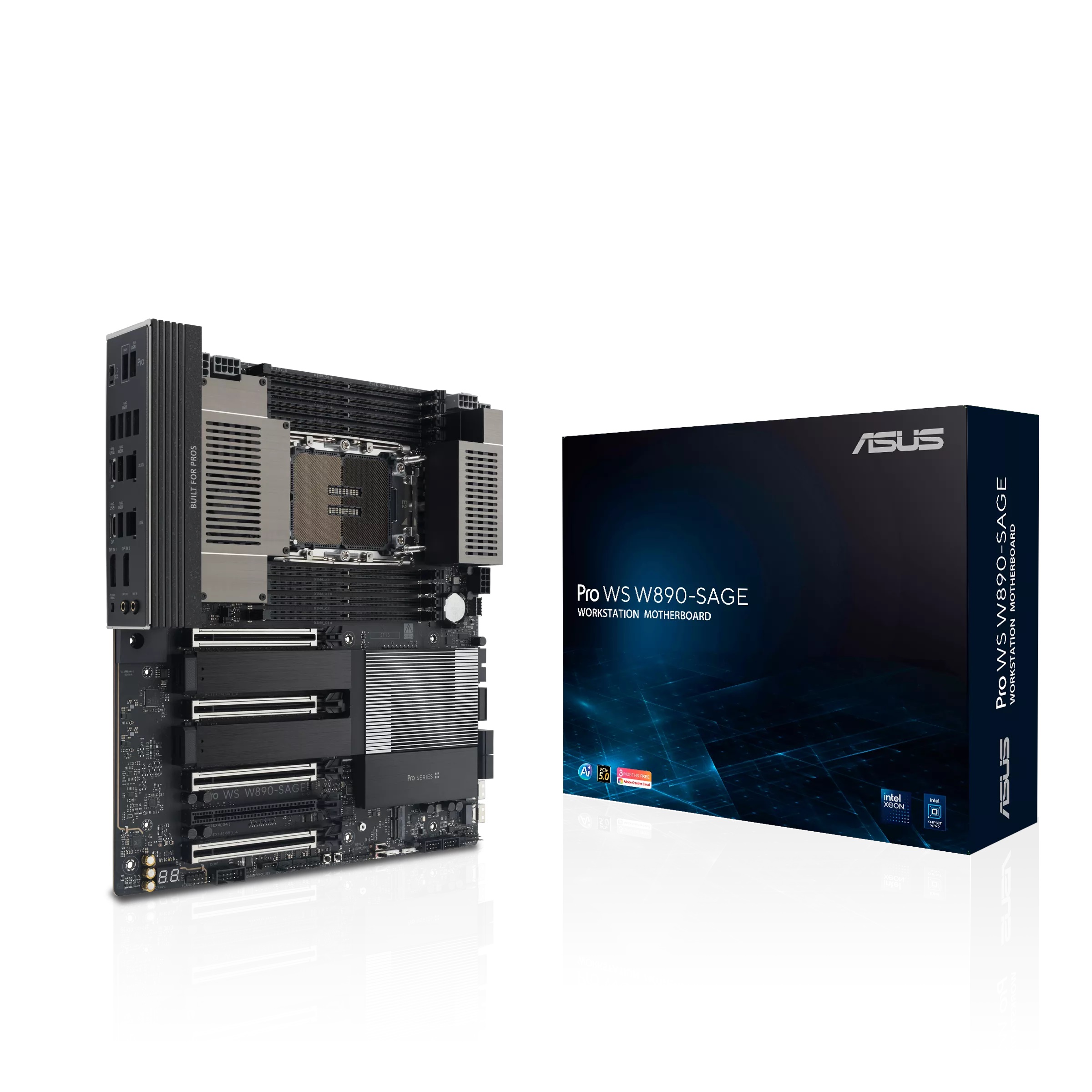

[MB] ASUS Pro WS W890-SAGE STCOM (Intel W890/EEB)
Intel LGA4710-2 EEB 워크스테이션 마더보드, PCIe 5.0 x16 슬롯 4개, 멀티 GPU 지원, 견고한 12+2+2+1+2 전력 스테이지 설계, CPU 및 메모리 오버클럭킹 지원, PCIe 5.0 M.2 슬롯 4개, 듀얼 10Gb LAN, SlimSAS 지원
고급 AI PC를 위한 준비: 미래의 AI 컴퓨팅을 위해 설계되었으며, 까다로운 AI 애플리케이션에 필요한 성능과 연결성을 제공합니다. Intel® LGA4710-2 소켓은 최대 86코어 CPU를 지원합니다. Intel® Xeon® 600 워크스테이션 프로세서에 최적화되어 있습니다. 초고속 연결: PCIe® 5.0 x16 슬롯 4개, 10Gb 및 2.5Gb LAN 포트, M.2 슬롯 4개, 후면 USB4® 40Gbps Type-C® 포트 2개, SlimSAS NVMe 지원. CPU 및 메모리 오버클럭: 최대 4TB ECC R-DIMM DDR5 메모리 모듈(2DPC) 지원. 견고한 전원 및 열 설계: CPU용 12+2+2+1+2 전원 스테이지, 듀얼 PSU 작동 지원, 대형 VRM, 칩셋 및 M.2 방열판(액티브 팬 포함), M.2 백플레이트 및 써멀 패드. 서버급 IPMI 원격 관리 지원: ASUS IPMI 확장 카드용 하드웨어 및 소프트웨어 지원, 실시간 모니터링 및 관리를 위한 ASUS Control Center Express 소프트웨어 제공. 안정적인 성능: 최신 기술과의 광범위한 호환성 검증, 풍부한 QVL 목록 지원, 24시간 365일 작동 테스트 완료.
Intel ® Socket LGA4710-2 for Xeon ® 600 Processors for Workstation Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. 8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)* 4-channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. 2 x USB 40Gbps (USB4®) ports support USB Type-C® display outputs*
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Output at USB4® Type-C® 40G USB 1 or USB4® Type-C® 40G USB 2 ports, each requires a DisplayPort IN to DisplayPort
adapter cable.
For more information on display connection and video output configuration using the DisplayPort IN ports, please refer to
the user manual.
*** The display function of the Type-C® port depends on the resolution supported by your processor or graphics card.
For more details, please refer to the product manual. Intel® Xeon® 690/670/650/630 Series Processors*4 x PCIe 5.0 x16 slots (supports x16 mode) Intel® W890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/).** CXL (Compute Express Link) is supported in PCIEX16(G5)_1, PCIEX16(G5)_2, PCIEX16(G5)_3, and PCIEX16(G5)_4 - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports
Intel® Xeon® 690/670/650/630 Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® W890 Chipset
SlimSAS_1 connector supports PCIe 4.0 x4 mode
SlimSAS_2 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an SFF-8654 adapter cable. The cable is
purchased separately.
4 x SATA 6Gb/s ports
* Supports Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel®VMD)
** Intel® VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately. 1 x Realtek 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately. Rear USB (Total 10 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit

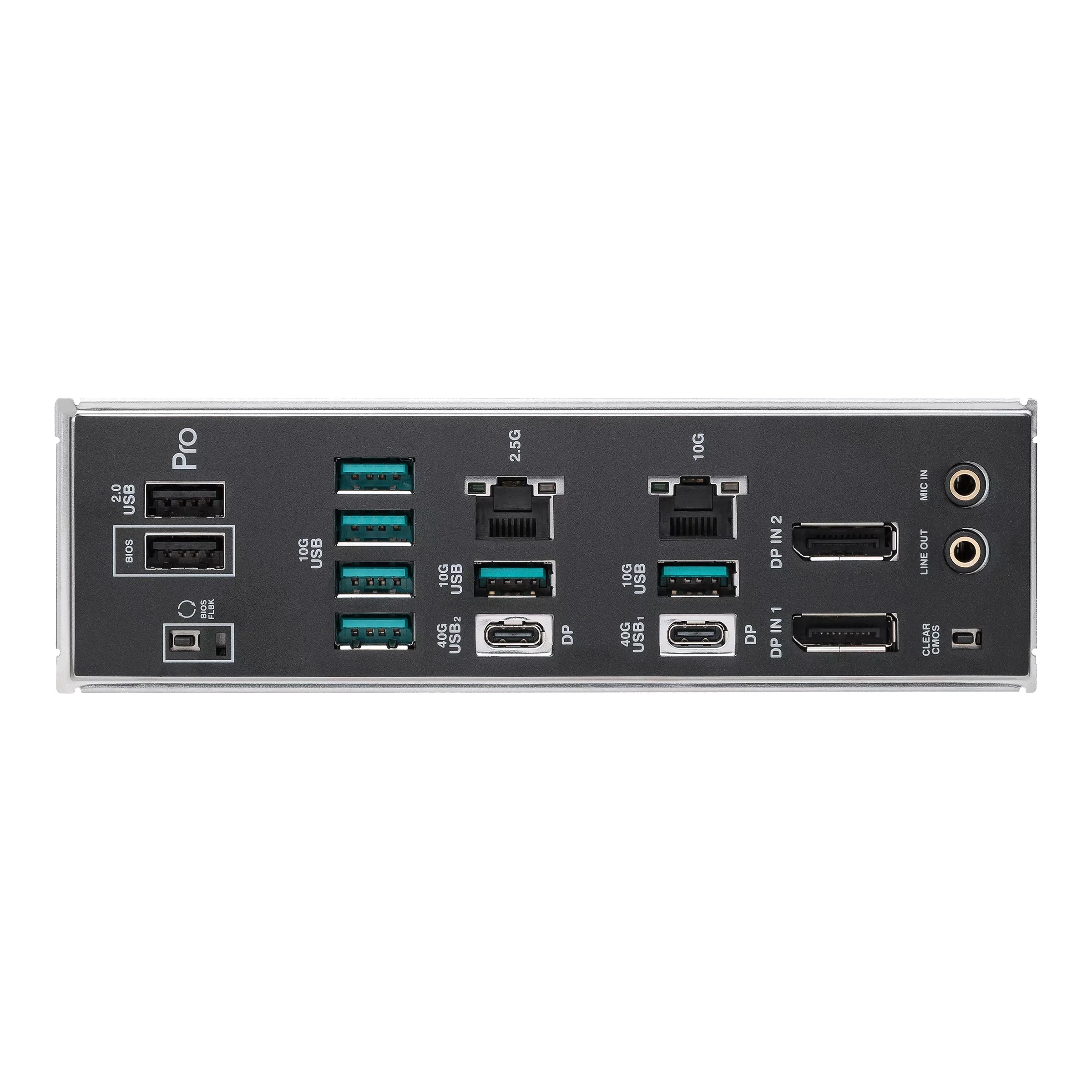

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x Realtek 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
2 x DP IN ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
5 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 4-pin VRM Fan header (with VRM fan onboard)
Power Related
1 x 24-pin Main Power connector
1 x 4-pin to 24-pin Main Power connectors
2 x 8-pin +12V CPU Power connector
2 x 8-pin PCIe to CPU power connectors
1 x 8-pin PCIe Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS connector
USB
1 x USB 20Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable RGB Gen 2 header(s)
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x M.2 slot (Key E)
1 x ReTry button
2 x RSVD header(s)/switch(es)
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin Front Panel System header
1 x VROC header
1 x Thermal Sensor header ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Code
- Q-Connector
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Steel backplate
- VRM heatsink design
- Fan-based active cooling design for VRM heatsink
ASUS EZ DIY
- Backplate
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
- 24/7 reliability
- Overcurrent protection ASUS Exclusive SoftwareArmoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 ASUS DriverHub - ASUS CPU-Z Adobe Creative Cloud (Free Trial)** Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/. Remote Management Features IT Management software supported
- ASUS Control Center Express (ACCE)
Intel W890 Chipset
Intel vPro®
Ready for IPMI Expansion Card*
1 x BMC header
* IPMI Expansion Card is sold separately. 512 Mb Flash ROM, UEFI AMI BIOS(text-based) Cables
2 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x DisplayPort cable
1 x 4-pin to 24-pin adapter cable for ATX power connector
Additional Cooling Kit
1 x detachable VRM/memory fan bracket kit
Miscellaneous
1 x Q-connector
2 x M.2 Q-Slide package
2 x M.2 backplate rubber packages
1 x Screw package for M.2 Key E
1 x E2A CPU carrier (for Intel® Xeon® 690 Series Processors)
1 x E2B CPU carrier (for Intel® Xeon® 670/650/630 Series Processors)
Documentation
1 x ACC Express activation key card
1 x Quick start guide CEB Form Factor
12 inch x 11 inch (30.5 cm x 28 cm) 출처 : Pro WS W890-SAGE｜Motherboards｜ASUS Global
