제목[SERVER] Supermicro SSG-542B-E1CR60 | 4U Storage Server (인텔제온6)2026-08-27 15:19
작성자 Level 10
첨부파일ssg-542b-e1cr60.pdf (623.7KB)

[SERVER] Supermicro SSG-542B-E1CR60 | 4U Storage Server (인텔제온6)




주요 응용 분야

빅 데이터 및 분석, 데이터 레이크

HPC 및 AI/ML 워크로드

통신 및 클라우드 서비스 제공업체

금융 서비스 및 의료 이미지 아카이브

콘텐츠 저장소

정부 데이터 보호


주요 기능

Intel® Xeon® 6700/6500 시리즈 P-코어 프로세서 또는 6700 시리즈 E-코어 프로세서, LGA-4710(소켓 E2) 단일 소켓 지원, CPU TDP 최대 350W 지원

최대 2TB ECC RDIMM, DDR5-6400MT/s(1DPC) 또는 DDR5-5200MT/s(2DPC)를 16개의 DIMM 슬롯에 지원

PCIe 5.0 x8 1개 및 PCIe 5.0 x16 HHHL 3개

60개의 3.5"/2.5" 핫스왑 SAS3/SATA3 드라이브, 2개의 2.5" 핫스왑 Gen4 NVMe 드라이브

드라이브 컨트롤러 Broadcom® 3916 또는 3816을 통한 지원

2000W 이중화 전원 공급 장치 티타늄 레벨(96%)








Product SKUs
SSG-542B-E1CR60
Motherboard
Super X14SBSC
Processor
CPU
Core Count
  • P-cores: Up to 86C/144T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
TPM
  • 1 TPM Onboard TPM & TPM Header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
Fan
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Certifications
Operating Systems
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-947STS-R2K05P
Dimensions and Weight
Height
  • 6.96" (177 mm)
Width
  • 17.6" (447 mm)
Depth
  • 32" (826 mm)
Package
  • N/A
Weight
  • Gross Weight: 170 lbs (77.11 kg)
  • Net Weight: 107 lbs (48.53 kg)
Palletized Packing (W x H x L)
  • 35.82" (805 mm) x 29.92" (755 mm) x 53.15" (1135 mm)
Available Color
  • N/A

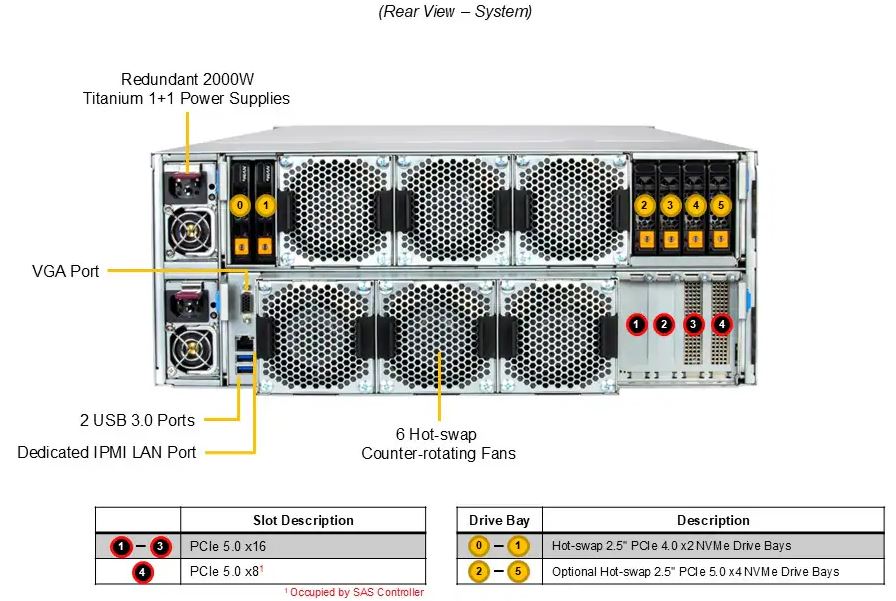

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x8 (in x8) HHHL slot
    • 3 PCIe 5.0 x16 (in x16) HHHL slots
  • View AOC Options
M.2
  • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 60 bays

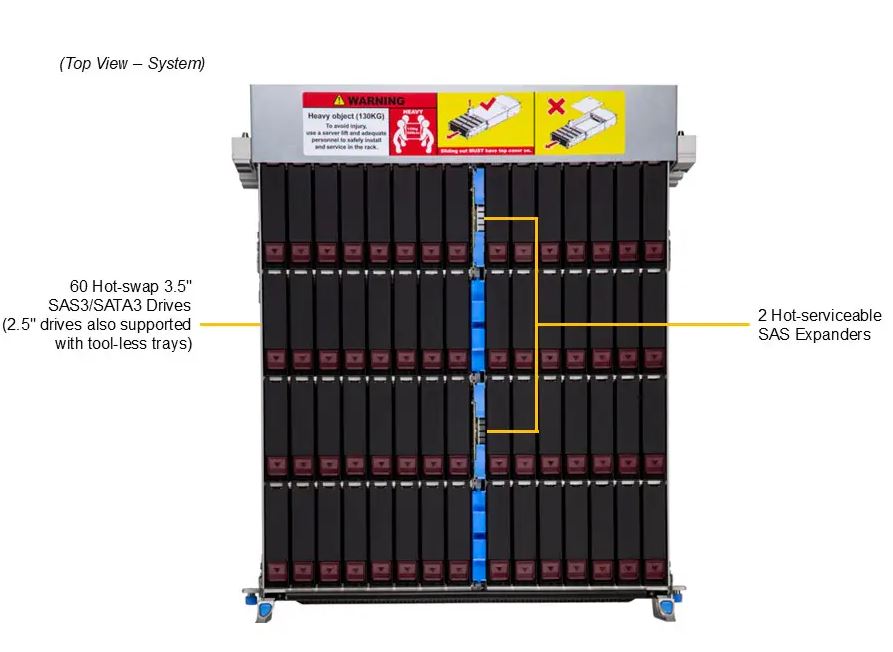

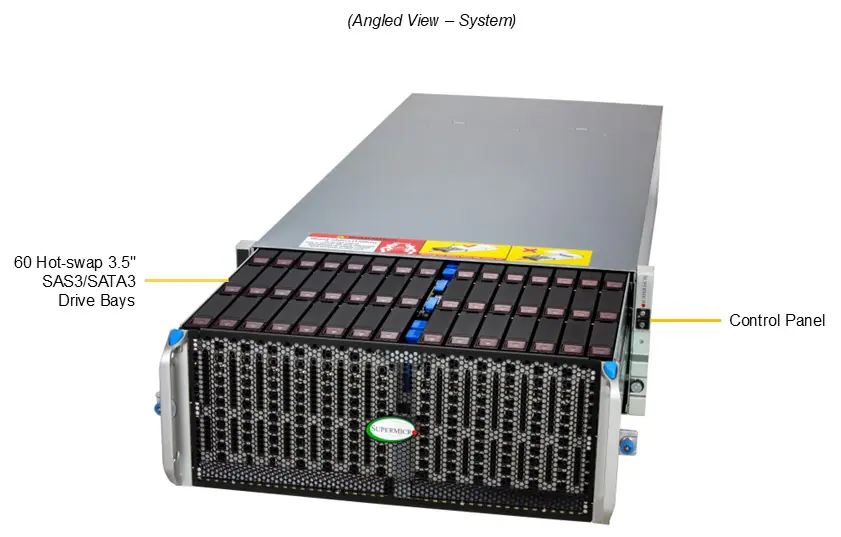

    • 60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays
  • Option A: Total 4 bays
    • 4 rear hot-swap 2.5" PCIe 4.0 x4 NVMe* drive bays
  • Option B: Total 2 bays

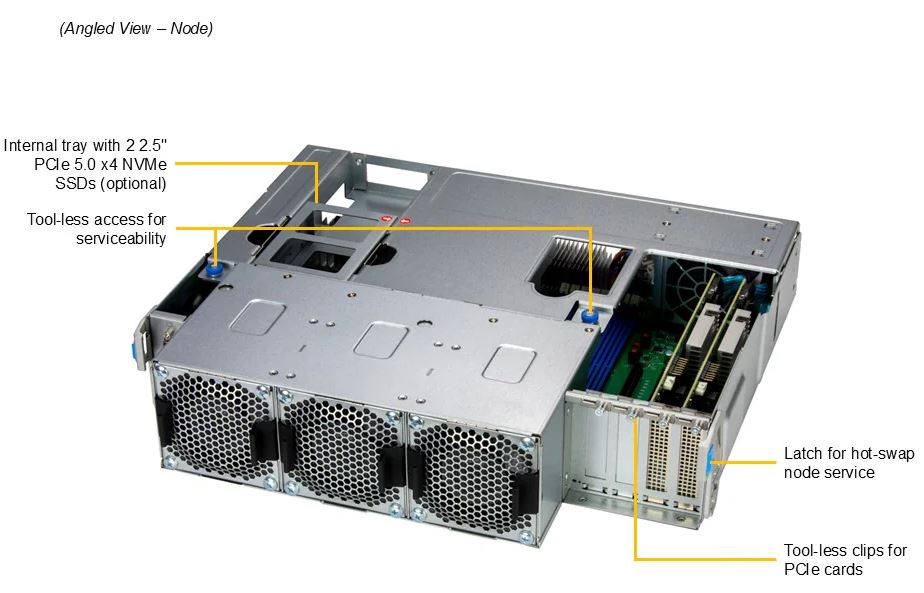

    • 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • Up to 6 Heavy Duty 8cm Fan(s)
  • Up to 1 Counter Rotating 6cm Fan(s)
Power Supply
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
Input100-127Vac
200-240Vac
1000W: 100-120Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vdc
2000W: 230-240Vac / 50-60Hz
2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83.3A / Min: 0A (100Vac-120Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
Max: 166.7A / Min: 0A (200Vac-240Vac)
Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)


상호SUPER MICRO COMPUTER. INC.
기기명칭Server
모델명SSG-542B-DE1CR60
파생모델명947S-R26X14
SSG-542B-E1CR60
947S-26
인증번호R-R-S2M-542B-DE1CR60
제조자SUPER MICRO COMPUTER. INC.
제조국가미국,네델란드,대만
인증연월일2026-08-26
