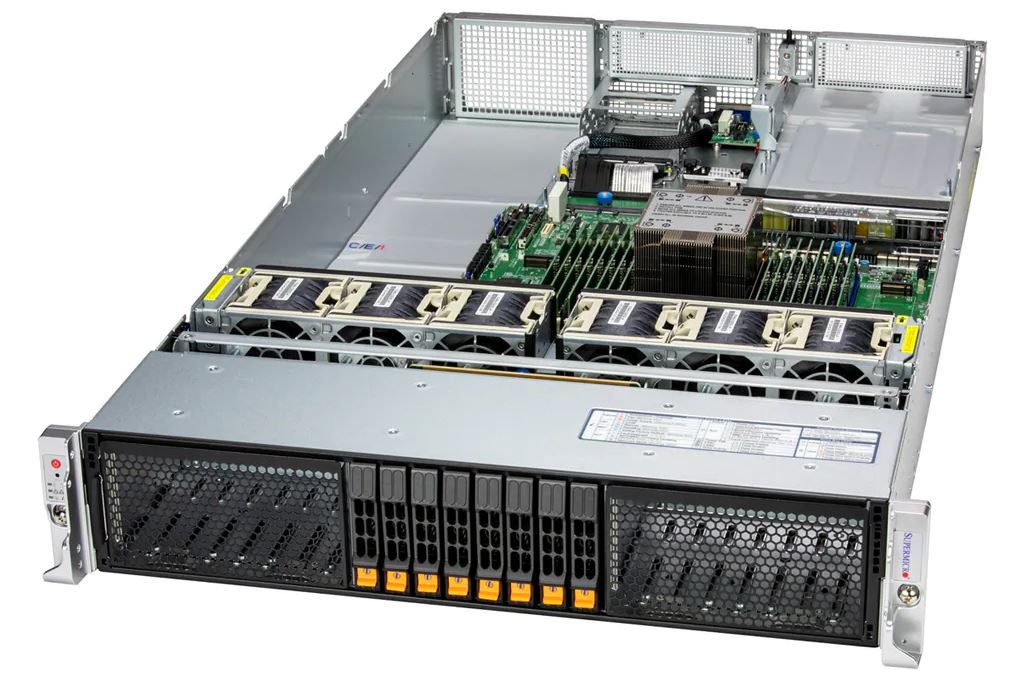

[SERVER] Supermicro SYS-212H-TN | 2U Hyper Server (인텔제온6)




주요 응용 분야

가상화, 소프트웨어 정의 스토리지, AI 추론 및 머신 러닝, 클라우드 컴퓨팅, 엔터프라이즈 서버, 데이터 센터 최적화, 데이터베이스 처리 및 고밀도 스토리지

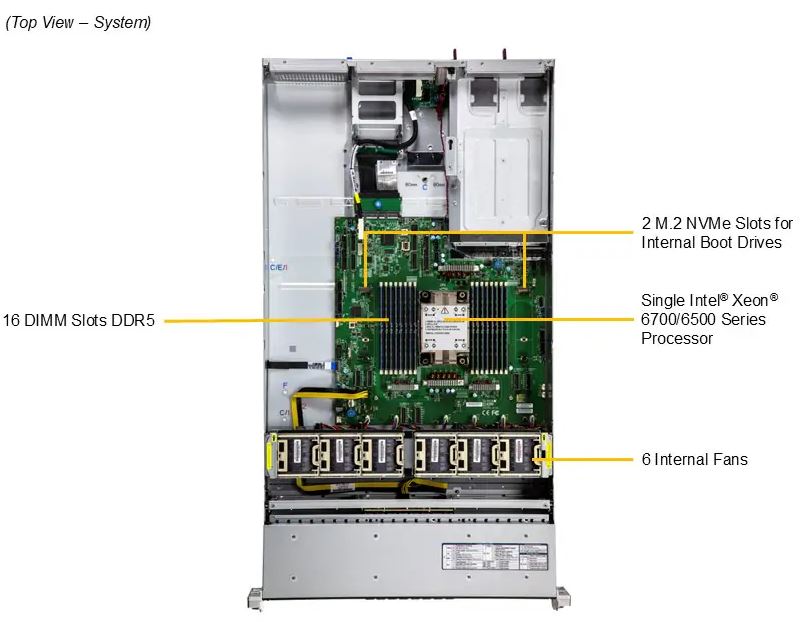

주요 특징

Hyper는 확장 가능한 클라우드 워크로드를 위해 설계된 플래그십 고성능 랙마운트 서버입니다.

Intel® Xeon® 6 프로세서 1개 탑재.

16개의 DIMM 슬롯은 RDIMM/MRDIMM(1DPC)을 지원합니다.

더블 폭 애드온 카드 지원.

1개의 AIOM 네트워킹 슬롯(OCP NIC 3.0 호환)을 통한 유연한 네트워킹 옵션 제공.

PCIe 5.0 NVMe 드라이브 지원으로 높은 처리량의 워크로드를 원활하게 처리.

TPM(Trusted Platform Module) 2.0 내장.

모듈식 및 툴리스 설계로 손쉬운 유지보수 가능.








Product SKUs
SYS-212H-TN
Motherboard
Super X14SBH
Processor
CPU
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 8 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100 NVL, A10, H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO 2000 Blackwell, NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 4500 Blackwell, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation
  • Intel PCIe: Intel Data Center GPU Flex 170
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
  • Max Memory (2DPC): Up to 4TB 6000MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 ports (Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB UEFI
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
Fan
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Certifications
Operating Systems
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS201-R000NFP
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (437 mm)
Depth
  • 31.74" (806.2 mm)
Package
  • 9.96" (H) x 26.46" (W) x 43.31" (D)
Weight
  • Gross Weight: 75 lbs (34 kg)
  • Net Weight: 45 lbs (20.5 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information

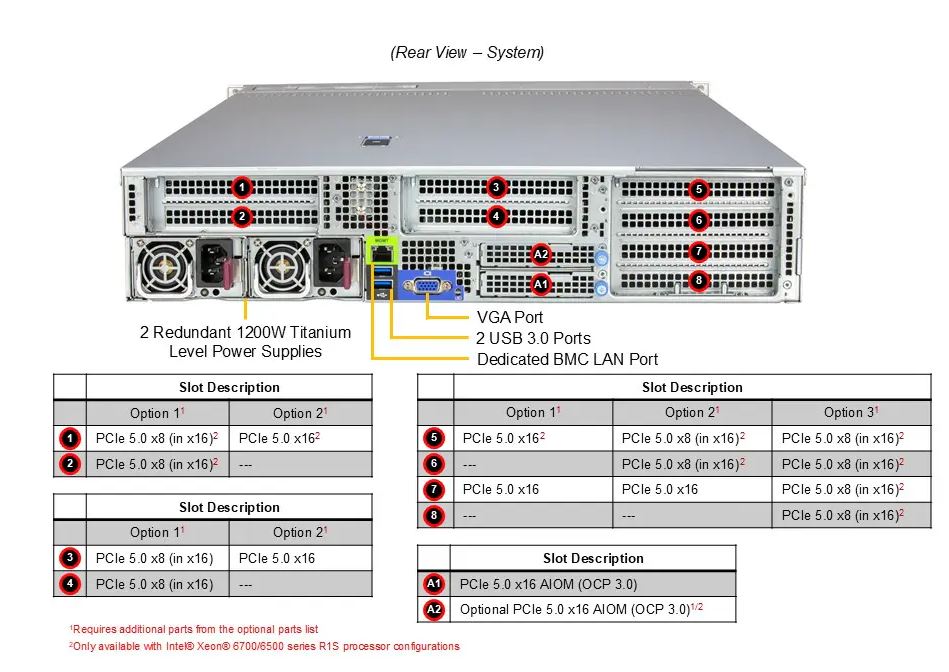

Expansion Slots
PCI-Express (PCIe) Configuration
  • Option A*
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 1 PCIe 5.0 x16 FH/10.5"L double-width slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B*
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 2 PCIe 5.0 x8 FH/10.5"L slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option C*
    • 4 PCIe 5.0 x16 (in x16) FHFL double-width slots
    • 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
    • ...
  • View AOC Options

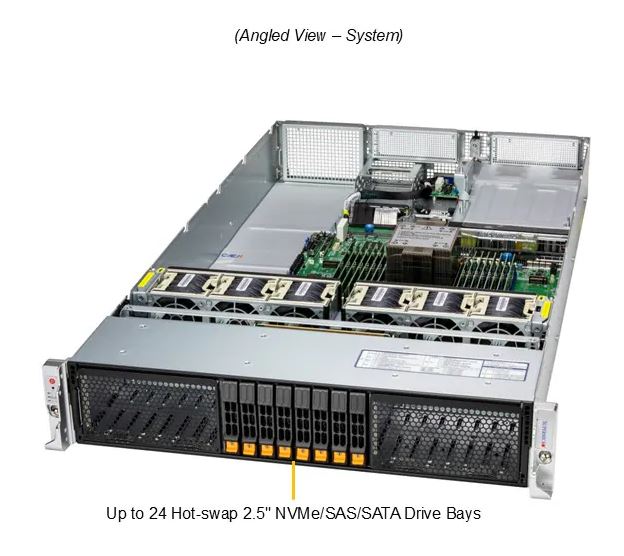

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • Option A: Total 16 bays
    • 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • Option B: Total 24 bays
    • 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 counter-rotating 60x60x56mm Fan(s)
Air Shroud
  • 1 CPU Air Shroud
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)


출처 : Supermicro SYS-212H-TN | 2U Hyper Server

SYS212HTN, 212HTN,Supermicro,2U,서버


상호SUPER MICRO COMPUTER. INC.
기기명칭Server
모델명SYS-212H-TN
파생모델명HS201-R12X14
HS201-R20X14
HS201-R16X14
HS201-R26X14
인증번호R-R-S2M-212H-TN
제조자SUPER MICRO COMPUTER. INC.
제조국가미국,네델란드,대만
인증연월일2026-08-19
