[SERVER] Supermicro ASG-2115S-NE332R | 2U Storage Server (AMD SP5)




주요 응용 분야

소프트웨어 정의 스토리지

인메모리 컴퓨팅

데이터 집약적 HPC

프라이빗 및 하이브리드 클라우드

NVMe Over Fabrics 솔루션


주요 특징

싱글 소켓 SP5 AMD EPYC™ 9004/9005 시리즈 프로세서, 최대 400WTDP

2DPC를 지원하는 24개의 DIMM 슬롯, 384GB 3DS RDIMM/RDIMM DDR5 ECC 메모리 24개 장착 시 최대 9TB 메모리 용량 지원

PCIe 5.0 x16 슬롯 2개 및 AIOM 슬롯 2개(OCP 3.0 SFF 호환)

핫스왑 E3.S(7.5mm) NVMe PCIe 5.0 x2 드라이브 베이 32개

이중화된 Titanium 2000W 전원 공급 장치






Product SKUs
ASG-2115S-NE332R
Motherboard
Super H13SSF
Processor
CPU
Note
  • Supports 200W - 400W TDP CPUs

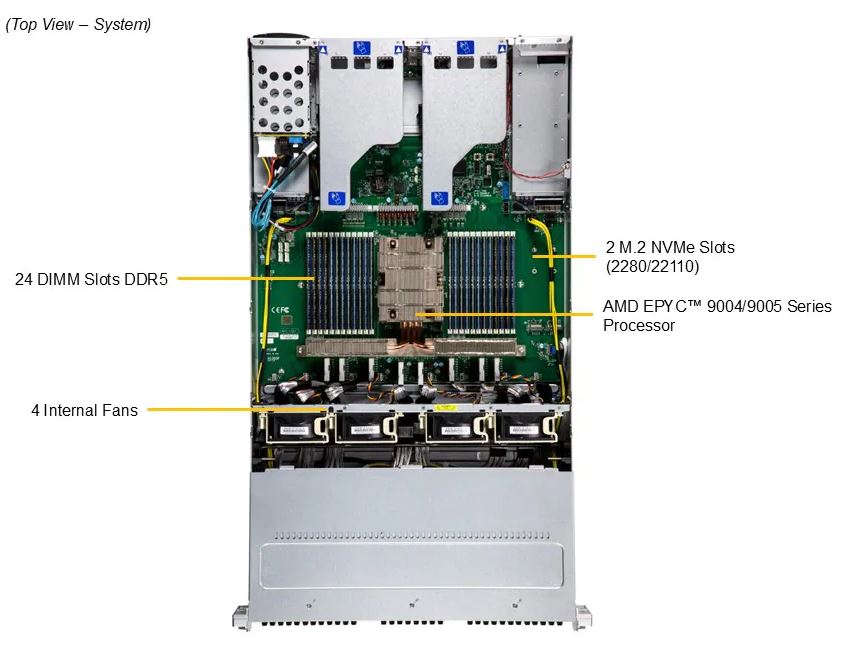

System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 3.0 ports (front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
Fan
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Certifications
Operating Systems
Enterprise Solutions
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-236E3-R2K08P
Dimensions and Weight
Height
  • 3.5" (89.8 mm)
Width
  • 17.2" (438.4 mm)
Depth
  • 30.8" (789.9 mm)
Package
  • 10" (H) x 26.5" (W) x 43.25" (D)
Weight
  • Gross Weight: 77 lbs (34.93 kg)
  • Net Weight: 55 lbs (24.95 kg)
Available Color
  • Silver

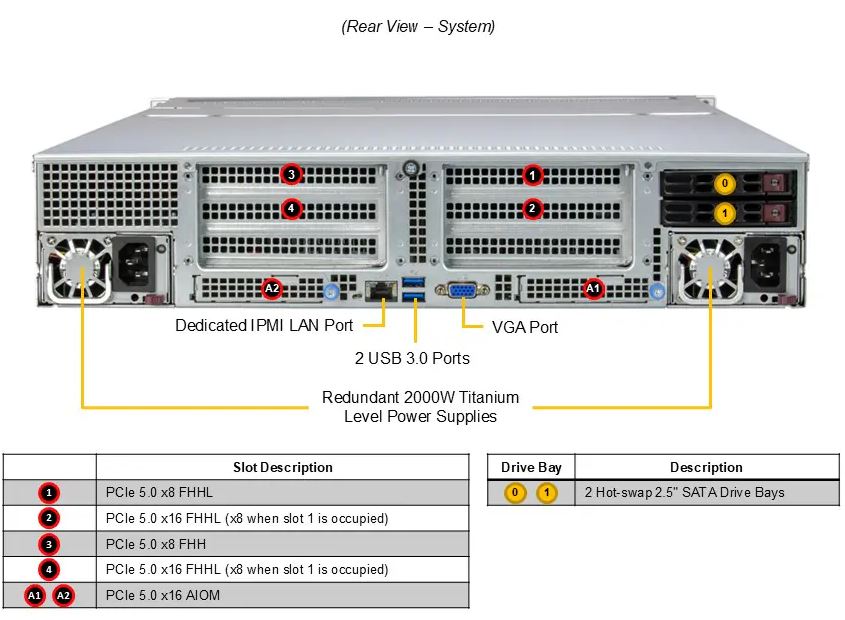

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)

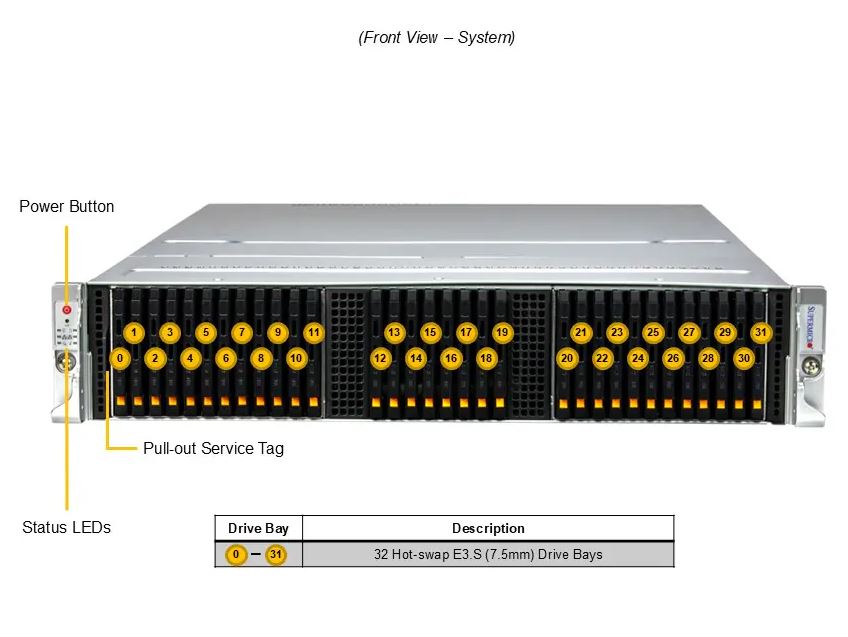

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 34 bays
    • 2 rear hot-swap 2.5" SATA drive bays

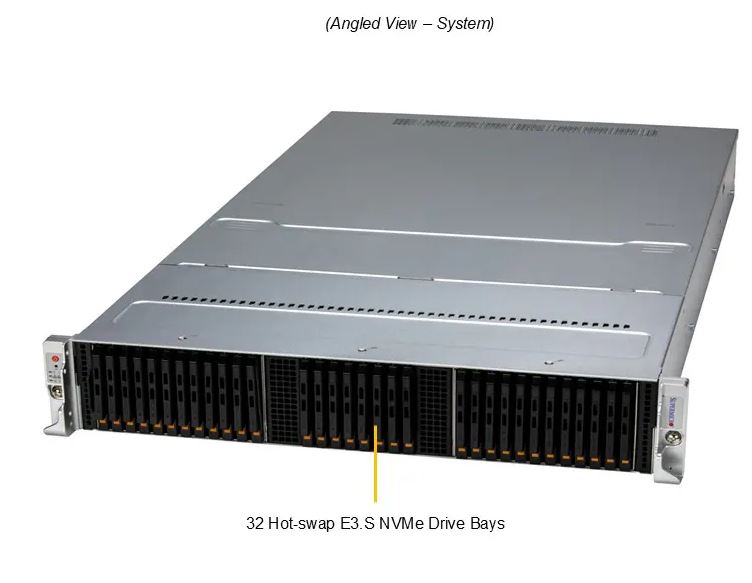

    • 32 front hot-swap E3.S 1T PCIe 5.0 x2 NVMe drive bays
M.2
  • 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
  • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 4 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vdc
2000W: 220-240Vac
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Environmental / Recycling
Recycle


상호SUPER MICRO COMPUTER. INC.
기기명칭Server
모델명ASG-2115S-NE332R
파생모델명236E3-R20H13
인증번호R-R-S2M-2115S-NE332R
제조자SUPER MICRO COMPUTER. INC.
제조국가미국,네델란드,대만
인증연월일2026-08-19
