제목[SERVER] Supermicro SYS-C512i-1 | Mini-ITX Client System Server (인텔)2026-08-25 10:24
작성자 Level 10
첨부파일sys-c512i-1.pdf (513.2KB)

[SERVER] Supermicro SYS-C512i-1 | Mini-ITX Client System Server (인텔)

주요 응용 분야

IT 인프라

소매, 금융 및 스마트 시티

스마트 소매/의료 전문가 시스템

사무용 애플리케이션

엣지 AI


주요 특징

Intel® Core™ Ultra 5 336H(시리즈 3) 프로세서, 12코어, TDP 최대 65W

두 개의 메모리 슬롯(1DPC)에 최대 128GB의 non-ECC DDR5 SODIMM/CSODIMM(클럭드 SODIMM) 메모리 지원(최대 7200 MT/s 속도)

최대 1개의 내부 고정형 2.5인치 SATA 드라이브 베이

1x 180W 전원 어댑터

깊이 225mm의 Mini-ITX 섀시

1x 2.5Gbps LAN 포트(i226-LM, Intel vPro 지원)

M.2 E-Key 모듈을 통한 CNVi WiFi 7 및 Bluetooth 6 지원







Product SKUs
SYS-C512i-1
Motherboard
Super CIPTLK-I-1
Processor
CPU
Core Count
  • 12C/12T; 18MB Cache
Note
  • Supports up to 65W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 2 DIMM slots/1 Channels
  • Max Memory (1DPC): 128GB 7200MT/s non-ECC DDR5 SO-DIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)

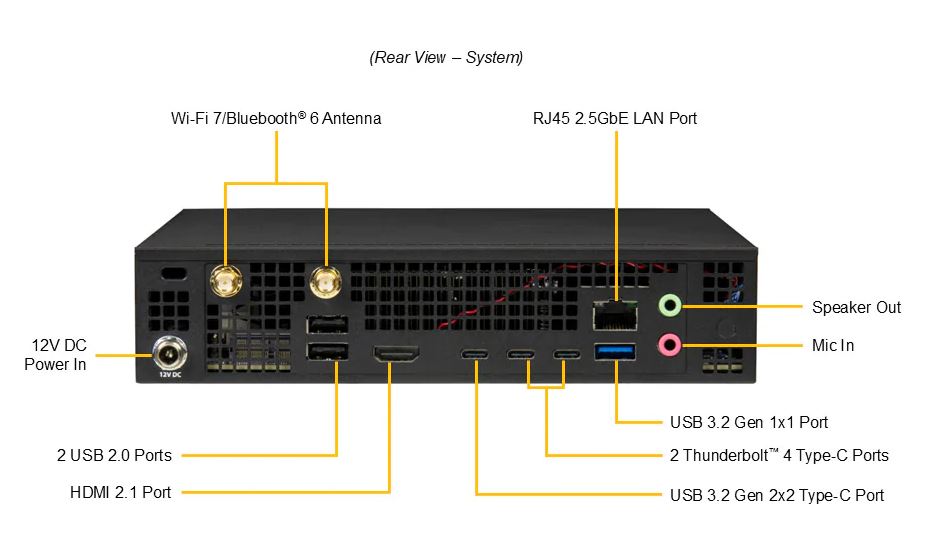

Input / Output
LAN
  • 1 RJ45 2.5 GbE LAN port (Intel® I226-LM)
USB
  • 2 USB 2.0 Type-A ports (rear)
  • 1 USB 3.2 Gen2x2 Type-C port (Rear)
  • 1 USB 3.2 Gen1 Type-A port (Rear)
  • 2 Thunderbolt™ 4 Type-C ports (Rear)
Video
  • 1 HDMI® 2.1 port (Rear)
Audio
  • ALC 888S HD Audio
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • Riser Card audio detection support
  • SMBIOS 3.0 or later
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • System Lockdown
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Certifications
Operating Systems
Chassis
Form Factor
  • Mini-ITX
Model
  • CSE-101FC

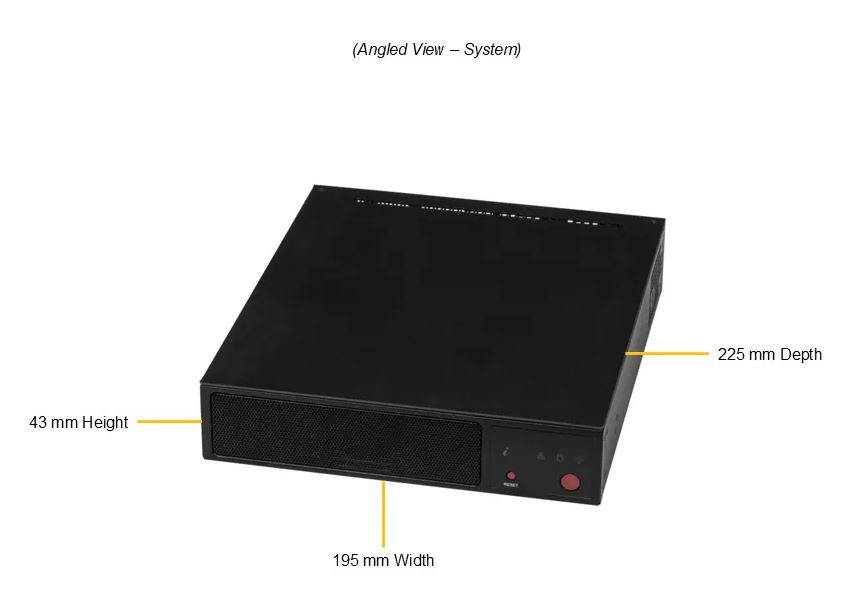

Dimensions and Weight
Height
  • 43 mm
Width
  • 195 mm
Depth
  • 225 mm
Package
  • N/A
Weight
  • Gross Weight: 6.2 lbs (2.8 kg)
  • Net Weight: 2.8 lbs (1.3 kg)
Available Color
  • Black

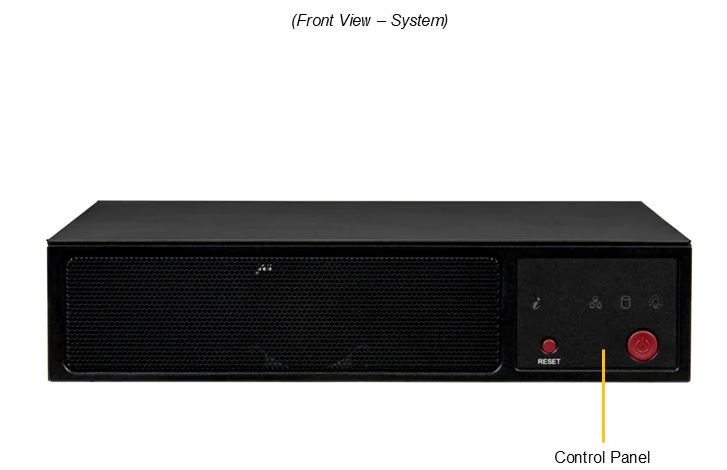

Front Panel
Buttons
  • Power On/Off
LED
  • Power status
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 1 bay
    • 1 internal fixed 2.5" SATA drive bay
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default)/22110)
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)/22110)
System Cooling
Fans
  • Up to 2x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
1x 180W power supply
Dimension (WxHxL)151.3 x 25.4 x 75.6 mm
Input180W: 100-240Vac / 47-63Hz
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)


상호SUPER MICRO COMPUTER. INC.
기기명칭Server
모델명SYS-C512i
파생모델명SYS-C512i-2
SYS-C512i-1
101F-A18CI
SYS-C512i-1(CIPTLK-I-1)
SYS-C512i-11101U
101F-18
SYS-C512i-2(CIPTLK-I-2)
SYS-C512i-21302U
인증번호R-R-S2M-C512i
제조자SUPER MICRO COMPUTER. INC.
제조국가미국,네델란드,대만
인증연월일2026-08-04
