제목[SERVER] Supermicro Hyper SuperServer SYS-112H-TN (1U, Intel LGA4710)2025-07-29 09:34
작성자 Level 10
첨부파일sys-112h-tn.pdf (509.9KB)

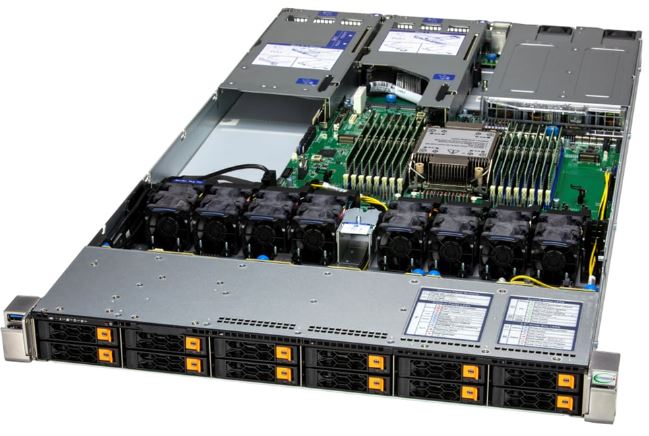

[SERVER] Supermicro Hyper SuperServer SYS-112H-TN (1U, Intel LGA4710)

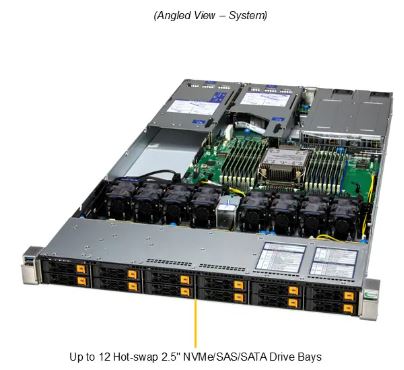

최대 12개의 핫스왑 2.5인치 NVMe/SAS/SATA 베이와 최대 3개의 PCIe 5.0 + 1개의 PCIe 5.0 AIOM 슬롯을 지원하는 1U UP Hyper


주요 애플리케이션

가상화, 금융, 스케일아웃 올플래시 NVMe 스토리지, 데이터센터 엔터프라이즈 애플리케이션, 클라우드 컴퓨팅, AI 추론, CDN/vCDN/클라우드 CDN


주요 기능

Hyper는 스케일아웃 클라우드 워크로드에 최적화된 플래그십 고성능 랙마운트 서버입니다.

단일 Intel® Xeon® 6 프로세서.

16개의 DIMM 슬롯은 RDIMM/MRDIMM(1DPC)을 지원합니다.

이중 폭 애드온 카드 지원.

1개의 AIOM 네트워킹 슬롯(OCP NIC 3.0 호환)을 통해 유연한 네트워킹 옵션을 제공합니다.

PCIe 5.0 NVMe 드라이브 지원으로 높은 처리량 워크로드를 손쉽게 처리합니다.

TPM(Trusted Platform Module) 2.0 온보드.

모듈형 및 도구 없이 간편하게 설계 서비스 가능성.




Product SKUsSuperServer SYS-112H-TN
Motherboard
Super X14SBH
Processor
CPU
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 3 single-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
  • Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 ports(Rear)
  • 1 USB 3.2 Gen1 port(Front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
ChassisForm Factor
  • 1U Rackmount
Model
  • CSE-HS101-R000NFP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 30.66" (778.7 mm)
Package
  • 8.82" (H) x 26.46" (W) x 43.31" (D)
Weight
  • Gross Weight: 41.4 lbs (18.8 kg)
  • Net Weight: 19.2 lbs (8.7 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 (in x16) FHHL slot
    • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
    • 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
  • Option A*
    • 1 PCIe 5.0 x16 (in x16) FHHL slot
    • 2 PCIe 5.0 x16 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration

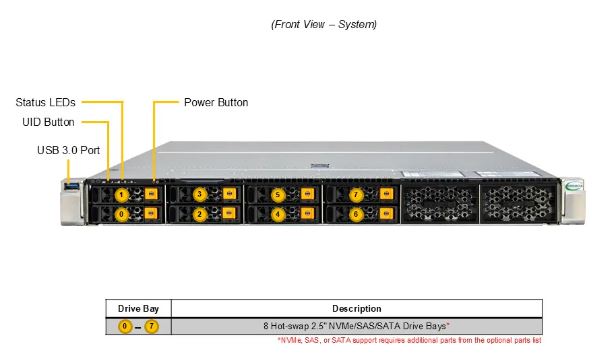

  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • Option A: Total 12 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
    • 4 front hot-swap 2.5" SAS*/SATA* drive bays

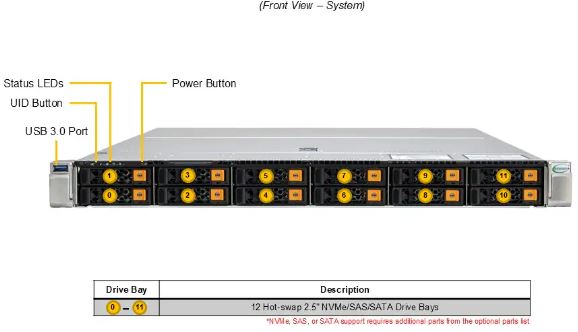

  • Option B: Total 12 bays
    • 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud
  • 1 CPU Air Shroud
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)


상호SUPER MICRO COMPUTER. INC.
기기명칭Server
모델명SYS-112H-TN
파생모델명HS101-R12X14
SYS-112HA-TN
인증번호R-R-S2M-SYS-112H-TN
제조자SUPER MICRO COMPUTER. INC.
제조국가미국,네델란드,대만
인증연월일2025-06-26
