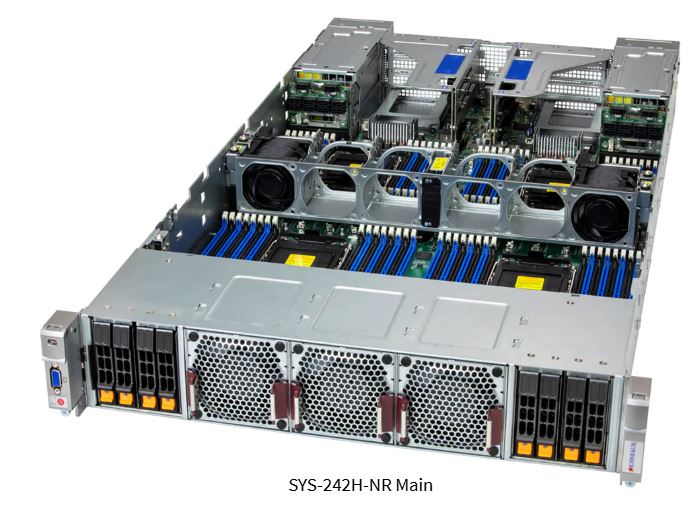

[SERVER] Supermicro MP SuperServer SYS-242H-NR (2U, Intel LGA4710)

64개의 DIMM과 8개의 NVMe 드라이브 베이를 갖춘 2U 4소켓 시스템


주요 애플리케이션

비즈니스 인텔리전스, ERP, CRM, 과학 가상화, 인메모리 데이터베이스, HCIS, SAP HANA


주요 기능

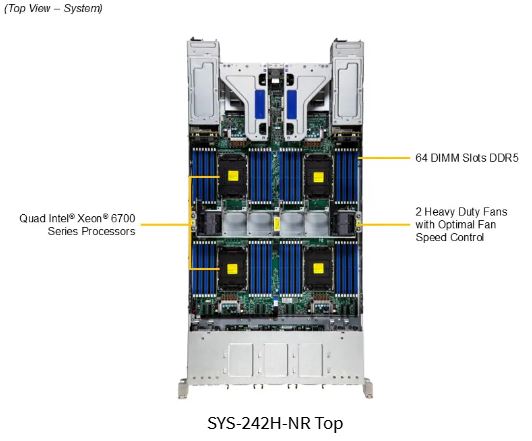

공랭식 P-코어 쿼드 Intel® Xeon® 6700 시리즈 프로세서(최대 350W)

최대 2개의 더블 폭 PCIe GPU 가속 카드 지원

2DPC에서 최대 16TB DDR5를 지원하는 최대 64개의 DIMM

최대 2개의 OCP 3.0 호환 AIOM 슬롯을 통한 유연한 네트워킹

최대 2개의 PCIe 5.0 x8 FHHL + 4개의 PCIe 5.0 x16 FHHL + 2개의 PCIe 5.0 x16 AIOM

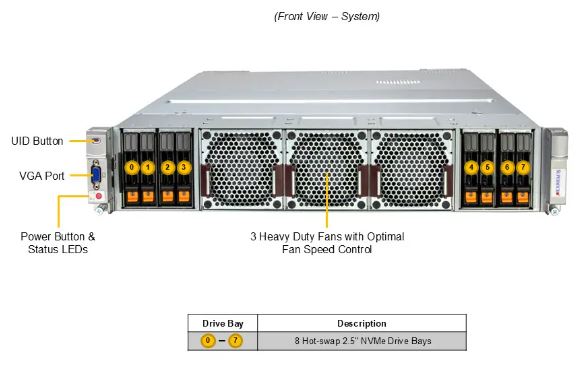

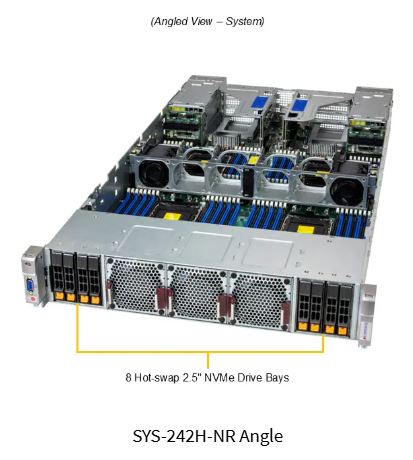

최대 8개의 전면 핫스왑 2.5인치 NVMe 드라이브 베이

4개의 이중화 2700W 티타늄 레벨 전원 공급 장치







Product SKUs
SuperServer SYS-242H-NR
Motherboard
Super X14QBH+
Processor
CPU
Core Count
  • Up to 86C/172T; Up to 336MB Cache per CPU
Note
  • Supports 165W - 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 64 DIMM slots
  • Max Memory (1DPC): Up to 8TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 16TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port(Front)
  • 1 DisplayPort port(Rear)
Serial
  • 1 COM port(rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218H2TS-R5K4AWP
Dimensions and Weight
Height
  • 3.5" (88 mm)
Width
  • 17.3" (438.4 mm)
Depth
  • 33.4" (848.7 mm)
Package
  • 11.53" (H) x 27.6" (W) x 46.57" (D)
Weight
  • Gross Weight: 99.7 lbs (45.2 kg)
  • Net Weight: 72.1 lbs (32.7 kg)
Available Color
  • Silver
Expansion Slots

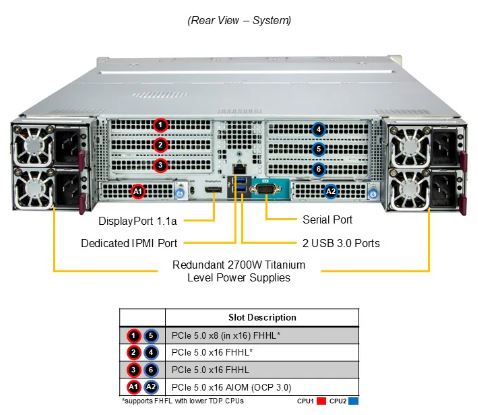

PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x8 (in x16) FHHL slots
    • 4 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A*
    • 2 PCIe 5.0 x16 FHFL double-width slots
    • 2 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110; VROC required for RAID)
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 2 Internal Heavy duty counter-rotating 6cm Fan(s)
  • 3 Heavy duty counter-rotating 8cm Fan(s)
Air Shroud
  • 4 Air Shrouds
Power Supply
4x 2700W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SBMax: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)


상호SUPER MICRO COMPUTER. INC.
기기명칭Server
모델명SYS-242H-NR
파생모델명218H2-Q27X14
218H2-27
인증번호R-R-S2M-242H-NR
제조자SUPER MICRO COMPUTER. INC.
제조국가미국,네델란드,대만
인증연월일2025-07-11
