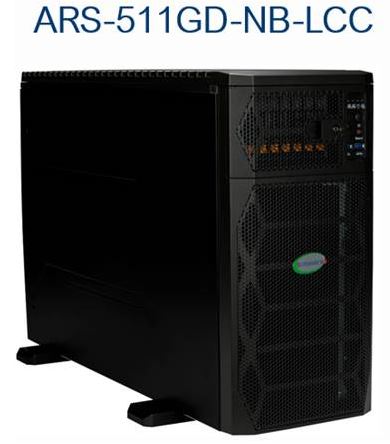

[Workstation] Supermicro ARS-511GD-NB-LCC (NVIDIA DGX Station GB300 Super AI Station)

주요 응용 분야

빅데이터/빅사이언스, 연구소/국가 연구소, AI 추론/학습, AI 개발

주요 특징

NVIDIA Grace™ CPU 슈퍼칩, 72코어

NVIDIA Blackwell B300 GPU, 최대 279GB HBM3e (온보드)

4x 128GB LPDDR5x SOCAMM (NVIDIA Grace™ CPU당 총 496GB 메모리)

최대 775GB의 coherent memory

NVIDIA ConnectX®-8 SuperNIC™

최대 20 PFLOPS의 AI 성능

폐쇄형 액체 냉각 시스템

NVIDIA DGX™ OS

출처 : ARS-511GD-NB-LCC | Tower or 5U | SuperServer | Products | Supermicro

 511GD,ARS511GDNBLCC,Supermicro,슈퍼마이크로,DGXSTATION,GB300,엔비디아,NVIDIAGB300,Blackwell,블랙웰,엔비디아GB300

보다 자세한 상담을 원하실 경우 서버비즈특판팀으로 전화 및 메일 문의 부탁드립니다.
대표전화 : 02) 707-0120 내선 : 8891 (토/일요일 및 공휴일 휴무) | 전자우편 : sales_b2b@stcom.co.kr

Chassis Form Factor Tower or 5U Model CSE-759TS-R0CNBP Dimensions and Weight Height 8.6" (218.4 mm) Width 17.9" (454.7 mm) Depth 27.6" (701 mm) Package 25.8" (H) x 15.3" (W) x 37.6" (D) Weight Gross Weight: 112.4 lbs (51 kg) Net Weight: 88 lbs (40 kg) Available Color Black Front & Black Body Front Panel LED HDD activity LED Power status LED Buttons Power On/Off button Reset button Expansion Slots PCI-Express (PCIe) Configuration Default 1 PCIe 5.0 x16 FHHL double-width slot 2 PCIe 5.0 x8 (in x16) FHHL slots View AOC Options M.2 1 M.2 PCIe 5.0 x4 slot (E-key 2230(default)) Drive Bays / Storage M.2 4 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default)) System Cooling Fans 2x 120mm Fan(s) 1x 80mm Fan(s) Liquid Cooling Direct to Chip (D2C) Cold Plate Power Supply 1x 1600W Titanium Level (94%) power supply Dimension (WxHxL) 150 x 86 x 210 mm Input 1300W: 100-114Vac / 50-60Hz 1600W: 115-240Vac / 50-60Hz +12V Max: 108.3A / Min: 0.1A (100Vac-114Vac) Max: 133.3A / Min: 0.1A (115Vac-240Vac) 5V SB Max: 3A / Min: 0A Output Type 24pin ATX Certification   Titanium Level Operating Environment Environmental Spec. Operating Temperature: 10°C to 25°C (50°F to 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
