제목[Workstation] Supermicro SYS-542T-2R (SuperWorkstation)2026-01-09 09:55
작성자 Level 10
첨부파일sys-542t-2r.pdf (493.9KB)

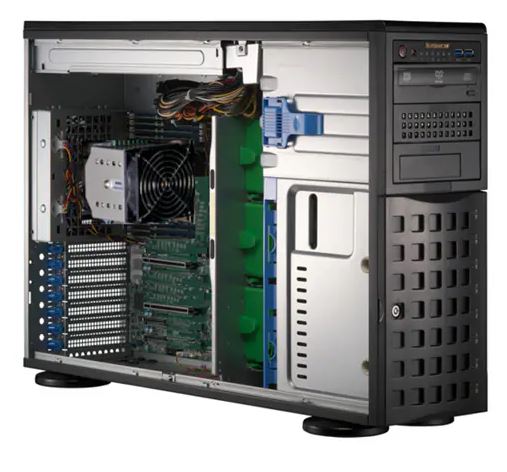

[Workstation] Supermicro SYS-542T-2R (SuperWorkstation)

미디어/비디오 라이브 스트리밍, 방송 및 CDN 애플리케이션을 위한 UP Full Rack 타워 워크스테이션





주요 응용 분야

CDN, 엣지 노드, CDN 최적화, 미디어/비디오 스트리밍, 클라우드 비디오 스트리밍, 주문형 비디오(VOD), 웹 캐시, CDN, 비디오 스트리밍, 비디오 처리 및 스트리밍, 콘텐츠 전송 네트워크(CDN), 비디오 및 음악 제작


주요 특징

Intel Xeon 6 SoC(P-코어, 36코어, 235W 미디어 트랜스코딩 가속기 탑재)

최대 1개의 트리플 폭 PCIe GPU 또는 2개의 더블 폭 PCIe GPU 가속기 카드 지원

최대 4개의 DIMM 슬롯(최대 256GB DDR5-6400 MT/s 지원)

2개의 100GbE QSFP28 + 1개의 IPMI 공유 LAN, 1개의 GbE RJ45

최대 1개의 PCIe 5.0 x16 FHFL + 1개의 PCIe 5.0 x16 FHFL 또는 2개의 PCIe 5.0 x8 FHFL + 1개의 PCIe 4.0 x8 FHFL + 1개의 PCIe 4.0 x2(물리적) 슬롯 지원 (x4)

최대 16개의 전면 고정형 3.5"/2.5" NVMe/SAS/SATA 드라이브 베이

2개의 이중화된 1200W 티타늄 레벨 핫플러그 전원 공급 장치


출처 : SYS-542T-2R | 4U | SuperServer | Products | Supermicro

 SYS542T2R, 542T, 542T2R, Supermicro,슈퍼마이크로, SuperWorkstation, 워크스테이션, Workstation


보다 자세한 상담을 원하실 경우 서버비즈특판팀으로 전화 및 메일 문의 부탁드립니다.
대표전화 : 02) 707-0120 내선 : 8891 (토/일요일 및 공휴일 휴무) | 전자우편 : sales_b2b@stcom.co.kr








Product SKUs
SuperWorkstation SYS-542T-2R
Motherboard
Super X14SDI-36C-SP3F
Processor
CPU
  • Intel® Xeon® 6 SoC
Core Count
  • 36C/72T; 144MB Cache
Note
  • Supports up to 235W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 triple-width or 2 double-width GPUs
Supported GPU
  • NVIDIA: GeForce RTX 5080, GeForce RTX 5090
  • NVIDIA PCIe: NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition
  • Intel: Arc™ Pro B50 Graphics, Arc™ Pro B60 Graphics
  • View GPU Options
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (1DPC): 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
SAS
  • SAS (12Gbps) ; RAID 0/1/5/6/10/50/60 support
Chipset
  • System on Chip
Network Connectivity
  • 2 QSFP28 100GbE with Intel® SoC
  • 1 RJ45 1GbE with Intel® I210-IT
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port (Intel® I210-IT) (IPMI shared on LAN port 1)
  • 2 QSFP28 100 GbE LAN ports (Intel® SOC)
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 4 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
FAN
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-745BTS-R000NDBP2

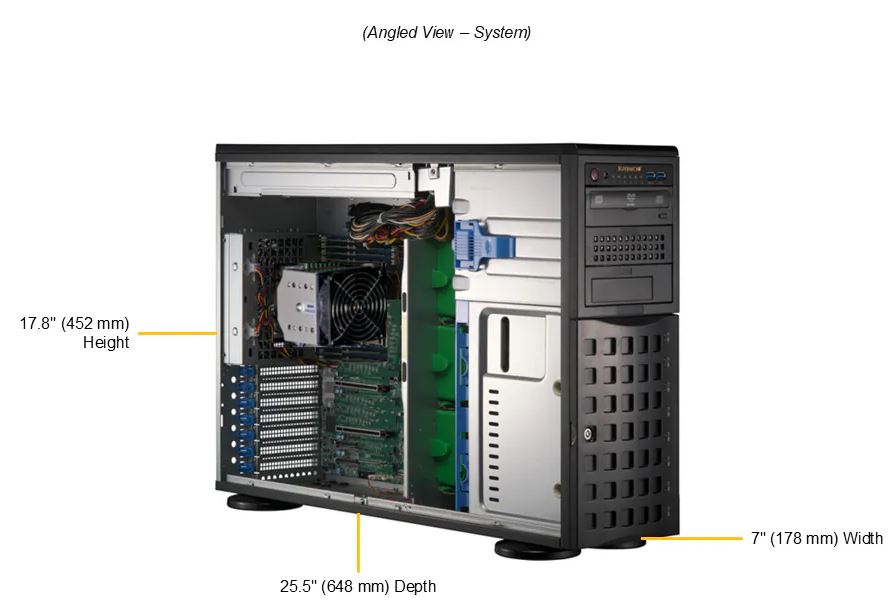

Dimensions and Weight
Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Package
  • 24.6" (H) x 14" (W) x 31.3" (D)
Weight
  • Gross Weight: 62 lbs (28.12 kg)
  • Net Weight: 59 lbs (26.76 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 4.0 x8 FHFL slot
    • 1 PCIe 4.0 x2 (in x4) FHFL slot
  • View AOC Options
M.2
  • 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110)
  • 1 M.2 PCIe 4.0 x2 slot (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration

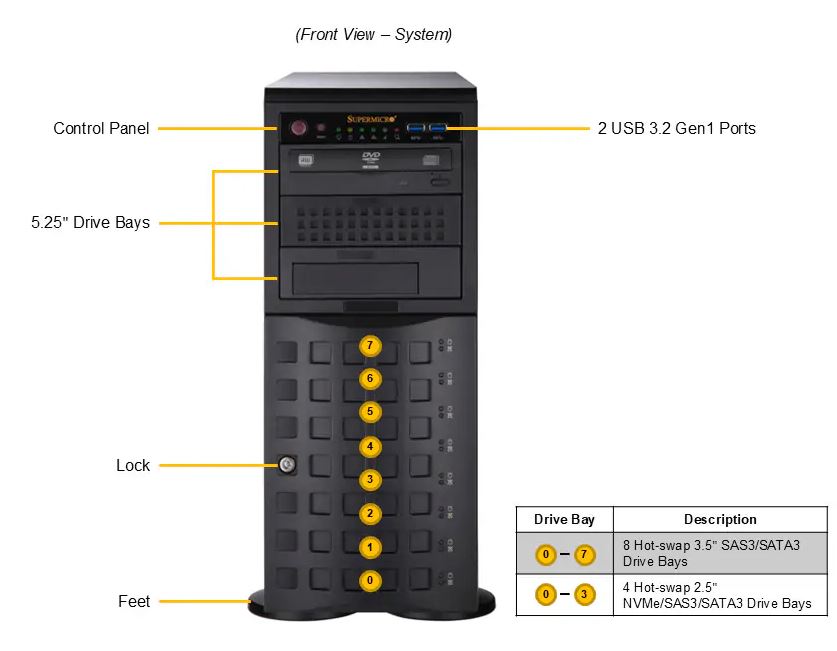

  • Default: Total 8 bays
    • 8 front fixed 3.5"/2.5" 24G SAS*/NVMe/SAS*/SATA drive bays
  • Option A: Total 16 bays
    • 8 front fixed 3.5"/2.5" 24G SAS*/SAS/SATA drive bays
    • 8 front fixed 2.5" 24G SAS*/NVMe*/SAS/SATA drive bays
  • (*24G SAS/NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110; VROC required for RAID)
Peripheral Bays
  • 1 DVD bay
System Cooling
Fans
  • 1 Exterior 80mm Fan(s) (optional)
  • 5 Acoustic Optimized （Hot Swap） 80mm Fan(s)
  • 5 Heavy Duty（Hot Swap） 80mm Fan(s) (optional)
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
